Product Overview
🔹The 84" Skid Steer Rock Grapple Bucket combines the sifting ability of a rock bucket with powerful dual grapple arms. It is built for picking up rocks, clearing brush, handling logs, cleaning jobsites, and removing loose debris.
🔹Two independent grapple arms provide better control over uneven loads, while 3/8" bucket tines, 1/2" grapple tines, and 3.2" spacing deliver the strength and separation needed for demanding cleanup work.
🔹Enclosed hydraulic cylinders and greasable pivot points help improve durability and serviceability. Designed for 20 GPM at 2,320 PSI, it fits a 48" Universal Skid Steer Quick Attach, with free shipping included.
Key Features
✅ Dual Independent Grapple Arms
Two independently operating grapple arms help secure uneven and irregular loads, providing better control when handling rocks, brush, logs, and jobsite debris.
✅ Heavy-Duty Steel Tines
Built with 3/8" bucket tines and 1/2" grapple tines for dependable strength when digging through debris, grabbing material, and handling demanding cleanup jobs.
✅ 3.2-Inch Tine Spacing
The 3.2" spacing allows loose dirt and smaller material to sift through the bucket while retaining larger rocks, branches, roots, and debris.
✅ 0–42 Inch Grapple Opening
A wide 0–42" operating range provides the flexibility needed to grab materials of different sizes, from compact debris piles to bulky brush and logs.
✅ Enclosed Hydraulic Cylinders
The hydraulic cylinders are enclosed to provide additional protection from rocks, branches, and debris during demanding grapple operations.
✅ Greasable Pivot Points
Grease fittings at key pivot points simplify routine lubrication and help reduce wear for dependable long-term operation.
✅ 20 GPM Hydraulic Operation
Designed for 20 GPM hydraulic flow and 2,320 PSI operating pressure, providing dependable hydraulic power for opening, closing, and controlling the grapple arms.
✅ Universal Quick Attach & Free Shipping
The 48" Universal Skid Steer Quick Attach provides convenient mounting on compatible loaders, with free shipping included.
Ideal Applications
The 84" Skid Steer Rock Grapple Bucket is designed for material handling, land clearing, and cleanup applications where operators need to grab, sift, carry, and remove bulky debris.
Perfect for:
✅ Rock & Stone Removal
✅ Brush Clearing
✅ Jobsite Cleanup
✅ Log & Firewood Handling
✅ Root & Branch Removal
✅ Yard & Property Cleanup
✅ Farm & Ranch Maintenance
✅ Landscaping Projects
✅ Construction Debris Handling
✅ Land Clearing
Whether you're separating rocks from loose soil, clearing overgrown property, moving logs, or cleaning construction debris, the 84" width, dual independent grapple arms, and open-tine bucket design provide the versatility needed for demanding material handling jobs.
Compatible Equipment
Designed for skid steer loaders equipped with the specified Universal Skid Steer Quick Attach and appropriate auxiliary hydraulic system.
Mounting & Hydraulic Requirements:
✅ Quick Attach Inner Width: 44.96"
✅ Hydraulic Flow: 20 GPM
✅ Operating Pressure: 2,320 PSI
✅ Bucket Width: 84"
✅ Grapple Operating Range: 0–42"
✅ Grapple Quantity: 2
⚠️ Before ordering, carefully verify your loader's mount plate dimensions, auxiliary hydraulic flow, and operating pressure. This attachment requires a 44.96" Universal Skid Steer Quick Attach, 20 GPM hydraulic flow, and 2,320 PSI operating pressure. If you're unsure about compatibility, simply send us your machine's brand and model, and our technical team will be happy to confirm fitment before you purchase.
Why Choose This Product?
✔ 84-inch wide bucket provides generous working coverage for land clearing, rock removal, and jobsite cleanup
✔ Dual independent grapple arms conform better to uneven and irregular loads for improved material control
✔ 3/8" bucket tines and 1/2" grapple tines provide dependable strength for demanding material handling applications
✔ 3.2-inch tine spacing allows loose soil and smaller material to sift through while retaining rocks, roots, branches, and debris
✔ 0–42 inch operating range accommodates materials of different sizes, including brush, logs, rocks, and bulky debris
✔ Enclosed hydraulic cylinders provide additional protection against rocks, branches, and jobsite debris
✔ Grease fittings at pivot points simplify routine maintenance and help reduce wear during long-term use
✔ Designed for 20 GPM at 2,320 PSI with a 48" Universal Skid Steer Quick Attach for compatible loaders
Specifications
| Specification |
Details |
| Product Type |
Skid Steer Rock Grapple Bucket |
| Bucket Width |
84" |
| Overall Dimensions |
84" × 41.4" × 32.6" |
| Grapple / Clamp Quantity |
2 |
| Grapple Operating Range |
0–42" |
| Bucket Tine Thickness |
3/8" |
| Grapple Tine Thickness |
1/2" |
| Teeth Thickness |
0.4" |
| Tine Spacing |
3.2" |
| Hydraulic Flow |
20 GPM |
| Operating Pressure |
2,320 PSI |
| Height |
23.4" |
| Bucket Depth |
38.3" |
| Bucket Height |
19" |
| Quick Attach Inner Width |
44.96" |
| Mounting Type |
Universal Skid Steer Quick Attach |

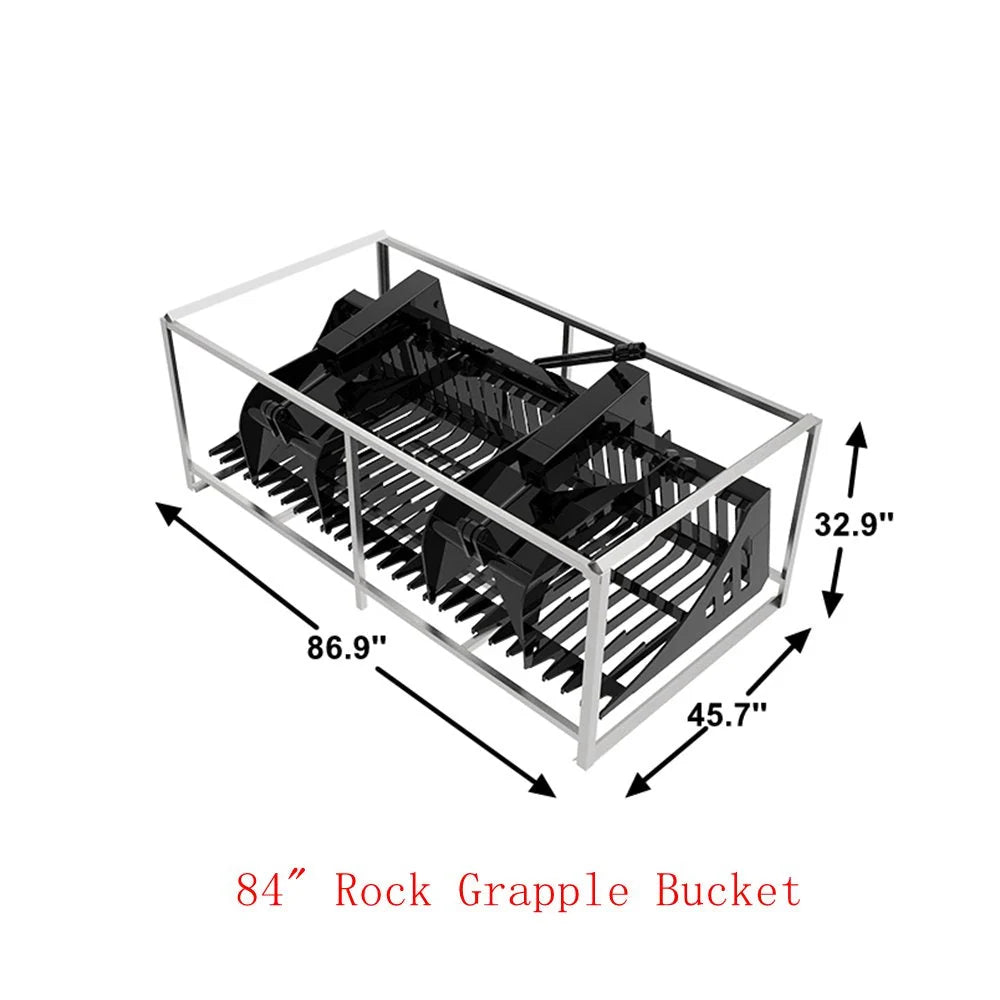

Technical Drawing
Please refer to the technical drawing above for detailed dimensions and mounting information for the 84" Skid Steer Rock Grapple Bucket.
Before ordering, carefully verify the 44.96" inner width of the Universal Skid Steer Quick Attach, along with your machine's hydraulic specifications.
⚠️ Fitment Notice: Mounting dimensions can vary between machines. Please confirm compatibility before purchasing to avoid fitment issues and unnecessary return shipping costs.
❓ Frequently Asked Questions
Q1. Will this rock grapple bucket fit my skid steer?
This attachment is designed for compatible skid steer loaders using the specified 44.96" Universal Skid Steer Quick Attach. Your machine should also support the required 20 GPM hydraulic flow and 2,320 PSI operating pressure.
If you're unsure about compatibility, send us your machine's brand and model before ordering, and our technical team can help verify fitment.
Q2. What are the main specifications of this grapple bucket?
The bucket measures 84" wide with overall dimensions of 84" × 41.4" × 32.6". It features two independent grapple arms, a 0–42" operating range, 3.2" tine spacing, and operates at 20 GPM and 2,320 PSI.
Q3. What can I use this rock grapple bucket for?
It is suitable for rock removal, brush clearing, log and firewood handling, root removal, landscaping, farm cleanup, construction debris handling, and general property maintenance.
The open-tine bucket design also allows smaller loose material to sift through while retaining larger debris.
Q4. What makes the dual independent grapple arms useful?
Each grapple arm can operate independently, allowing the attachment to conform more effectively to uneven or irregular loads.
Combined with the 0–42" operating range, this provides better control when securing rocks, logs, brush, roots, and bulky debris.
Q5. How long does shipping take?
All items ship from our USA warehouse.
Standard shipping typically takes 3–8 business days after dispatch. Large items requiring freight shipping generally take 8–15 business days, while some remote-area deliveries may take approximately 20–25 business days.
Tracking information will be provided after shipment.
Q6. Does this rock grapple bucket include a warranty?
Yes. Your purchase is backed by our 1-Year Limited Warranty covering eligible manufacturing-related issues under normal use.
Damage caused by accidents, misuse, or improper operation is not covered.
Warranty & Support
Your purchase is backed by our 1-Year Limited Warranty, giving you added confidence with every order.
The warranty covers eligible manufacturing-related issues under normal use. It does not cover damage caused by:
✔ Accidental damage
✔ Misuse or neglect
✔ Improper operation
✔ Unauthorized modifications
✔ Normal wear and tear
If you experience a problem with your attachment, please contact our customer support team first. We'll help troubleshoot the issue and determine the appropriate solution.
Shipping Information
🇺🇸 Ships from Our USA Warehouse
All products ship directly from our U.S. warehouse, with free shipping included.
Standard Shipping
Estimated delivery: 3–8 business days after dispatch. Deliveries to remote areas may require additional transit time.
Freight Shipping
Large items requiring freight delivery typically arrive within 8–15 business days. Some remote-area deliveries may take approximately 20–25 business days.
📦 Tracking
Tracking information will be provided after your order ships so you can monitor delivery progress.
⚠️ Delivery Notice
Transit times are carrier estimates and are not guaranteed. Delivery may be affected by remote locations, weather, holidays, peak shipping seasons, freight scheduling, or other carrier-related delays.
If you have a specific delivery deadline, please contact us before purchasing to confirm the estimated timeline.
Returns & Refunds
We accept qualified returns in accordance with our return policy.
Return Conditions:
✔ Products must be returned in original condition with the original packaging intact.
✔ All included components must be returned with the product.
✔ The buyer is responsible for applicable return shipping costs.
✔ A 20% restocking fee will apply, and applicable non-refundable handling fees may also be deducted.
⚠️ Compatibility Notice: Please verify your skid steer's mount plate dimensions, hydraulic flow, and operating pressure before ordering. If the product does not fit because compatibility was not verified before purchase, the buyer will be responsible for applicable round-trip shipping costs.
Refunds will not be issued until the product has been received at our warehouse, inspected, and confirmed to be in resalable condition.
Do not return any product without contacting us first. Unauthorized returns cannot be accepted.
Ready to Get More Done?
Take on demanding cleanup and material handling jobs with the 84" Skid Steer Rock Grapple Bucket. Its dual independent grapple arms, open-tine bucket design, wide operating range, and protected hydraulic system make it a versatile solution for rocks, brush, logs, roots, and jobsite debris.
Order today and enjoy free shipping, fast delivery from our USA warehouse, and dependable quality backed by attachMan.
